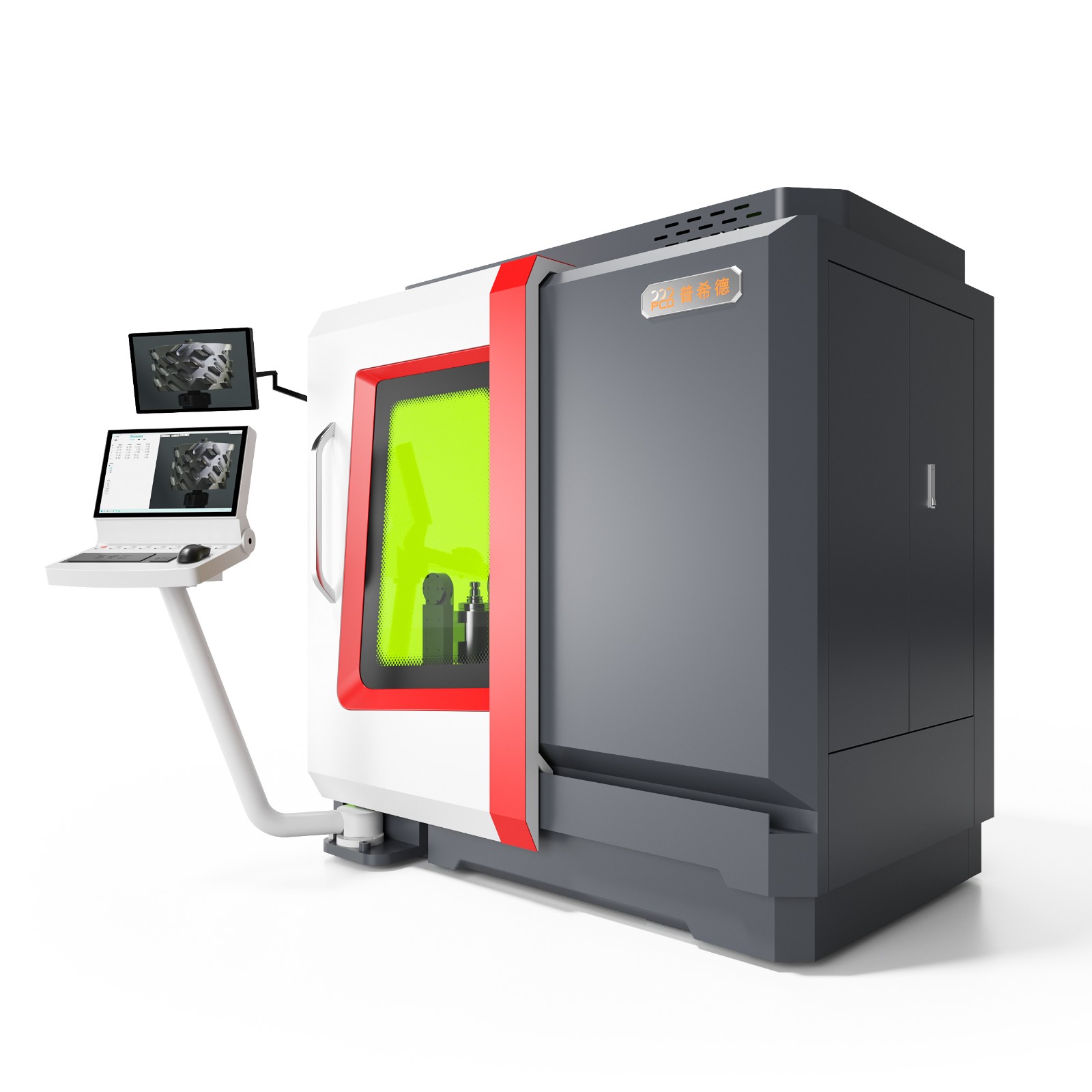

WEALTHY SAW

Wealthy Saw is a compact machine dedicated to machining PCD woodworking saw blades. Its small footprint boosts space utilization, with intuitive human-machine interaction that cuts operator training costs and offers flexible production options for competitive markets.

  1. Dedicated 6-axis linkage laser system for high-efficiency PCD saw blade machining
  2. Contactless laser cutting delivers smooth, seamless, crack-free blade edges, reduces material damage, maximizes material utilization and eliminates waste
  3. Supports direct DXF file import for automatic program generation, realizing automatic, fast and precise saw blade processing

Download brochure

WEALTHY SAW Video

Product Description



    Equipment parameters

    Machine Model

    WEALTHY SAW

    Machine tool linear axis Trevel

    X*Y*Z：270*270*220mm

    Rotating Range

    Axis A: 0-360. Axis B土25° Axis C土95°

    Type of laser

    1064 fiber laser

    Main Application

    		 6-axis machining for super-hard saw
    blade edges

    Linear Axis accuracy

    Repeat: 0.005mm Positioning:士0.005mm

    A/B Rotating  accuracy

    Repeat: 5 arc seconds Positioning:士5 arc seconds

    Maximum tool weight

    30KG

    Maximum tool diameter

    Diameter: 600mm

    Dimensions

    L: 2150*W2760* H2080mm

    weight

    4 tons

    Tool (workpiece) mounting interface

    HSK-A63 interface



    External dimensions Installation conditions



    Power requirements



    AC220V ± 10% 2 phase 5KW CE60A or above



    Installation environment

    Please place the machine on the concrete floor that can bear the weight of the machine, without vibration and impact, within the temperature range of 22 °~26 ° C, humidity<50% RH (no condensation), and the environment is free of oil mist and dust.

    Air source requirements

    ＞0.55MPa

    Grounding construction

    It is recommended to follow the Class C regulations in the electrical equipment standard. Please construct separately from other machines
