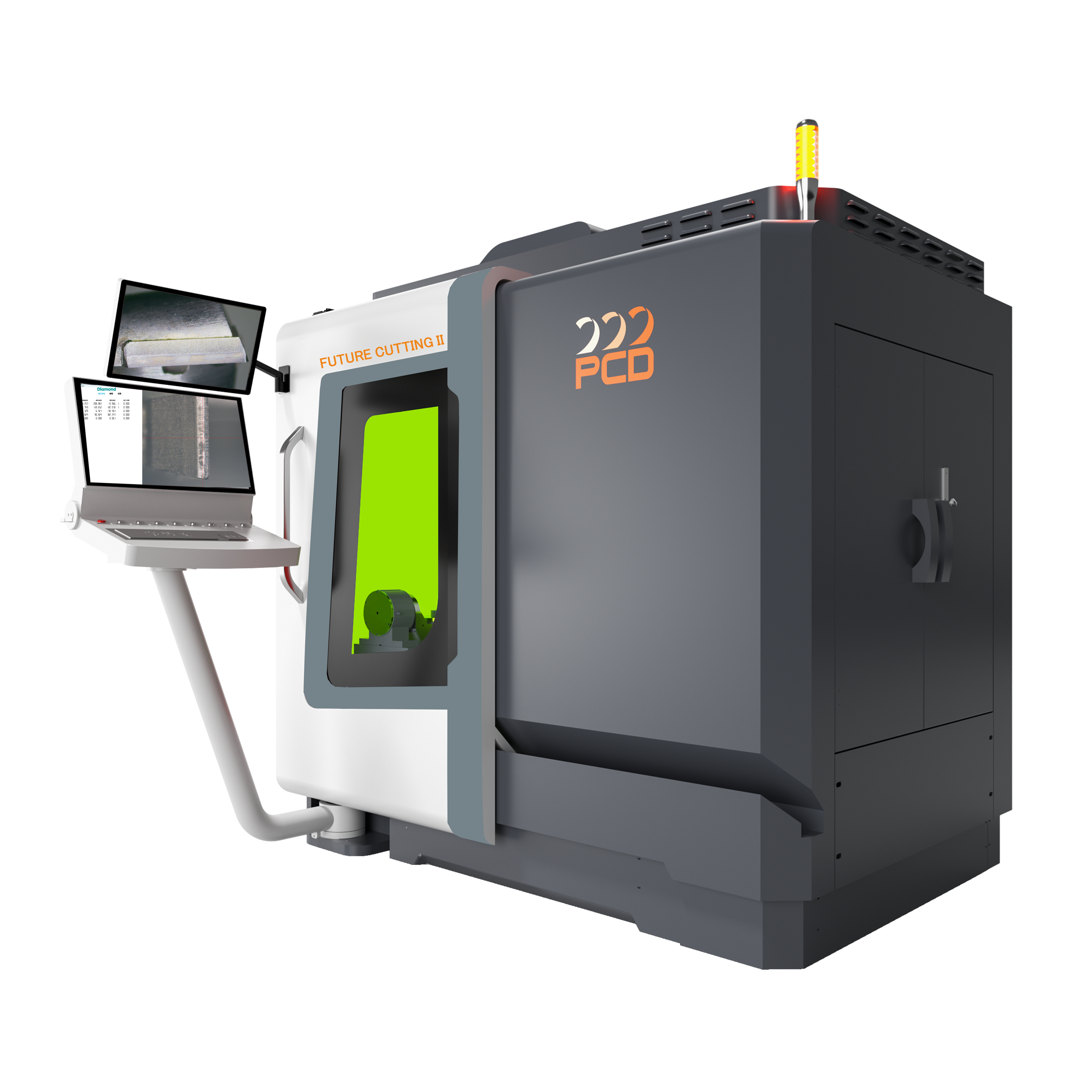

1.Unique Vertical Design : Specially engineered for rod-shaped straight-shank tools. It perfectly adapts to over 80% of common tool blanks, making it the ideal solution for high-volume mass production.
2.Delivers excellent material removal efficiency in pre-machining; significantly boosts overall productivity when paired with other machines。
3.Key advantages: high efficiency and easy operation.
Equipment parameters
|
MachineModel |
FutureCutting-AY(fiveaxis) |
|
Machine tool linear axis Trevel |
X*Y*Z：300*270*300mm |
|
Rotating Range |
A-axis: 0-360 °, B-axis ± 40 ° |
|
Type of laser |
1064 Nanosecond Laser |
|
Main Application |
Rod-shaped Ultra-hard Tool |
|
Linear Axis accuracy |
Repetition: 0.004mm Positioning: ± 0.004mm |
|
A/B Rotating accuracy |
Repeat: 4 seconds Positioning: ± 4 angular seconds |
|
Maximum workpiece weight |
5 kg |
|
Maximum tool Size |
Diameter: Ø120mm Length：180mm |
|
Dimensions |
L * W * H: 2150 * 2760 * 2080mm |
|
weight |
4 tons |
|
workpiece installation interface |
D20 flange clamp interface |
External dimensions Installation conditions
|
Power requirements
|
AC220V ± 10% 2 phase 5KW CE60A or above |
Installation environment |
Please place the machine on the concrete floor that can bear the weight of the machine, without vibration and impact, within the temperature range of 22 °~26 ° C, humidity<50% RH (no condensation), and the environment is free of oil mist and dust. |
|
Air source requirements |
＞0.55MPa |
Grounding construction |
It is recommended to follow the Class C regulations in the electrical equipment standard. Please construct separately from other machines |
